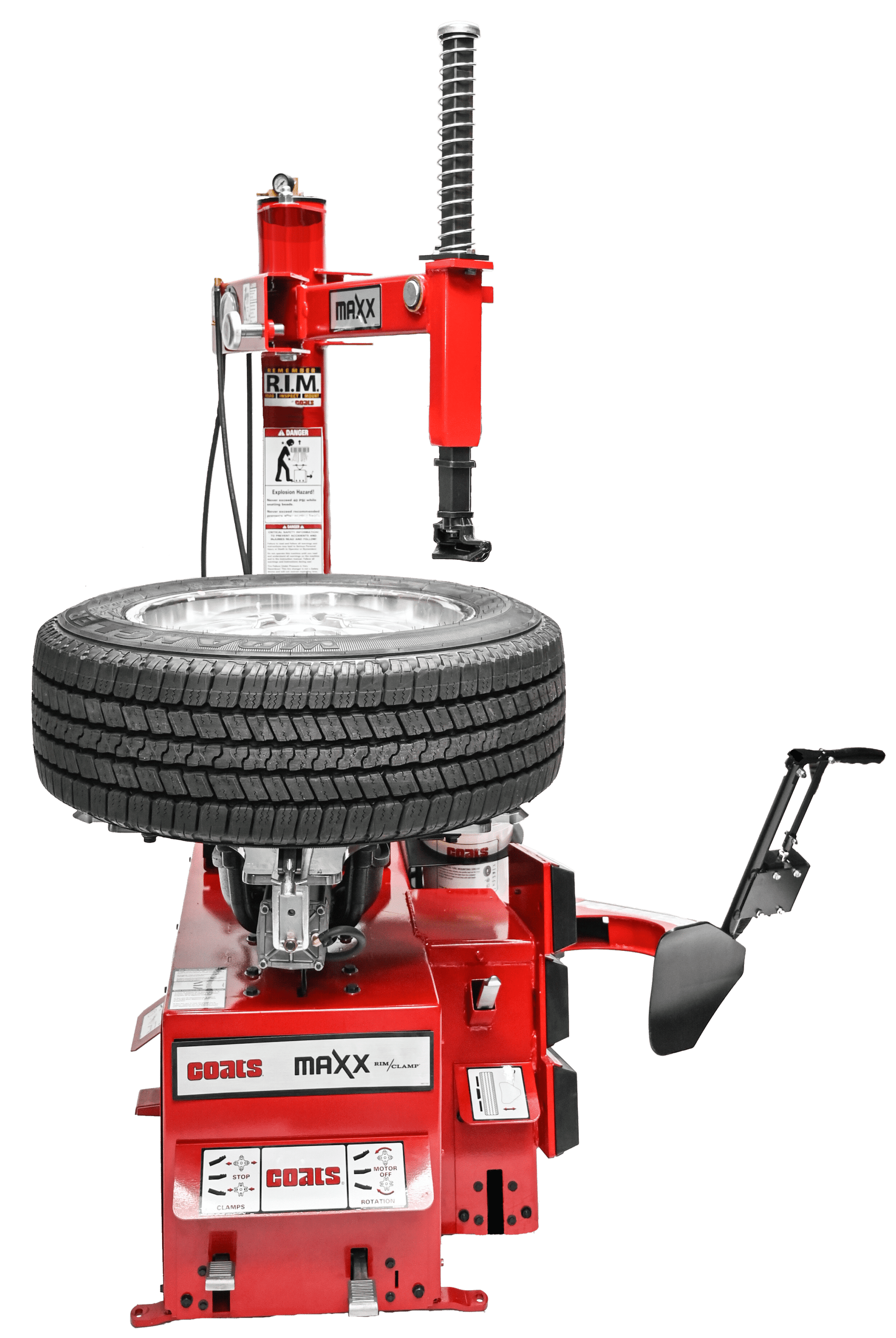

Coats MAXX 50 Tire Changer - Electric or Air Motor
Coats MAXX 50 Tire Changer - Electric or Air Motor
Car and Light Truck
6" - 24" External Rim Diameter
50" Max Tire Diameter
16” Max Rim Width
Hand Control Bead Loosening System
High Pressure Dual Nozzle
Swing Away Arm & Nylon Duckhead Mount/Dismount System

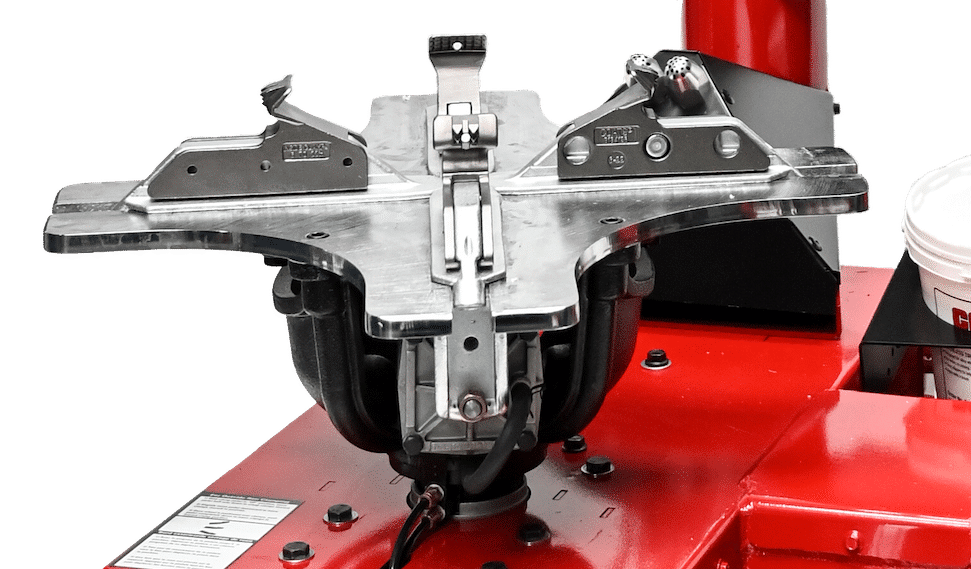

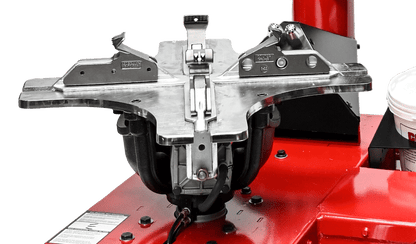

4 Rim Clamp, Air Cylinder Operated
110 V Electric Motor or 110-175 psi, 15 scfm Air Motor

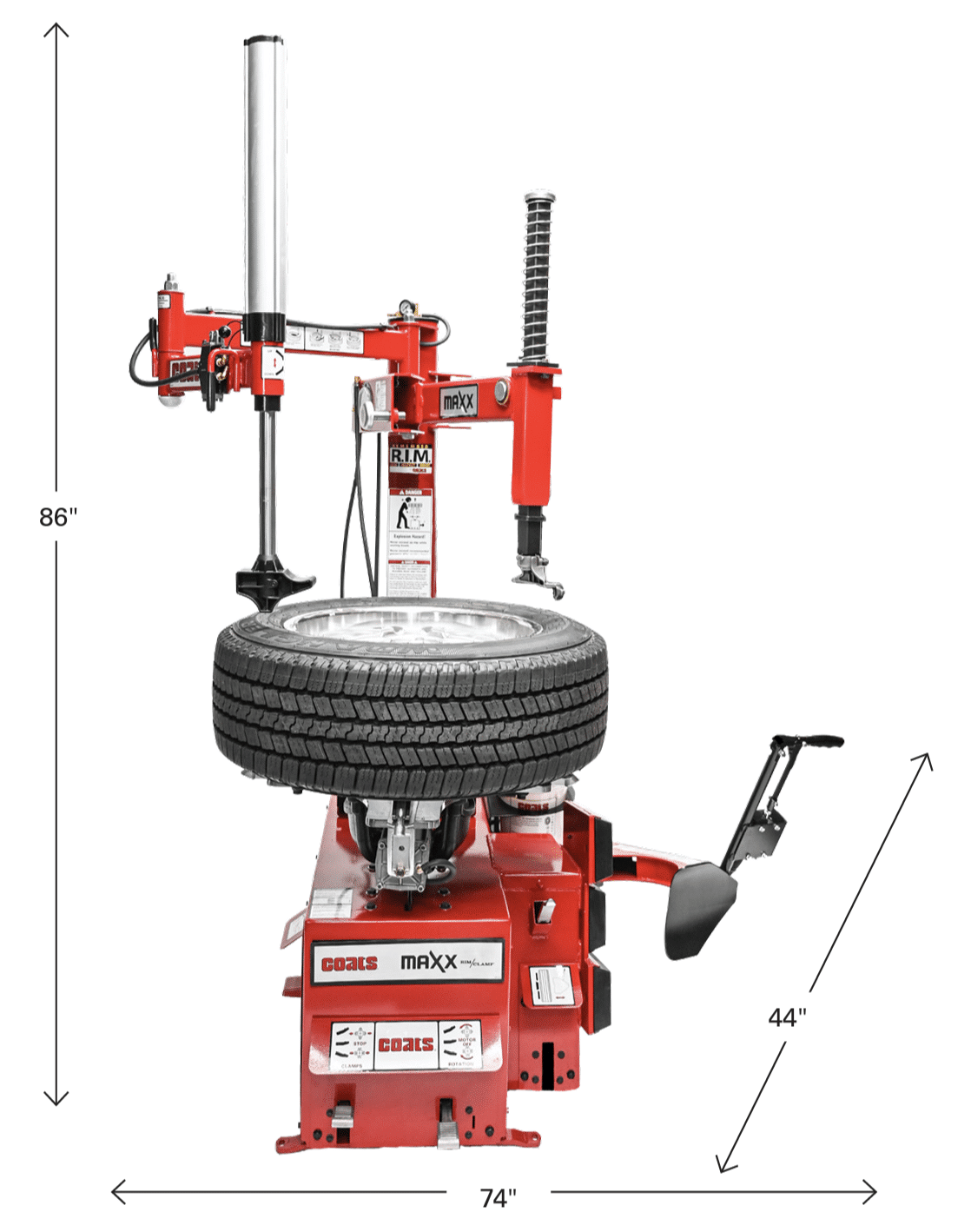

74"w x 44"d x 81"h Footprint

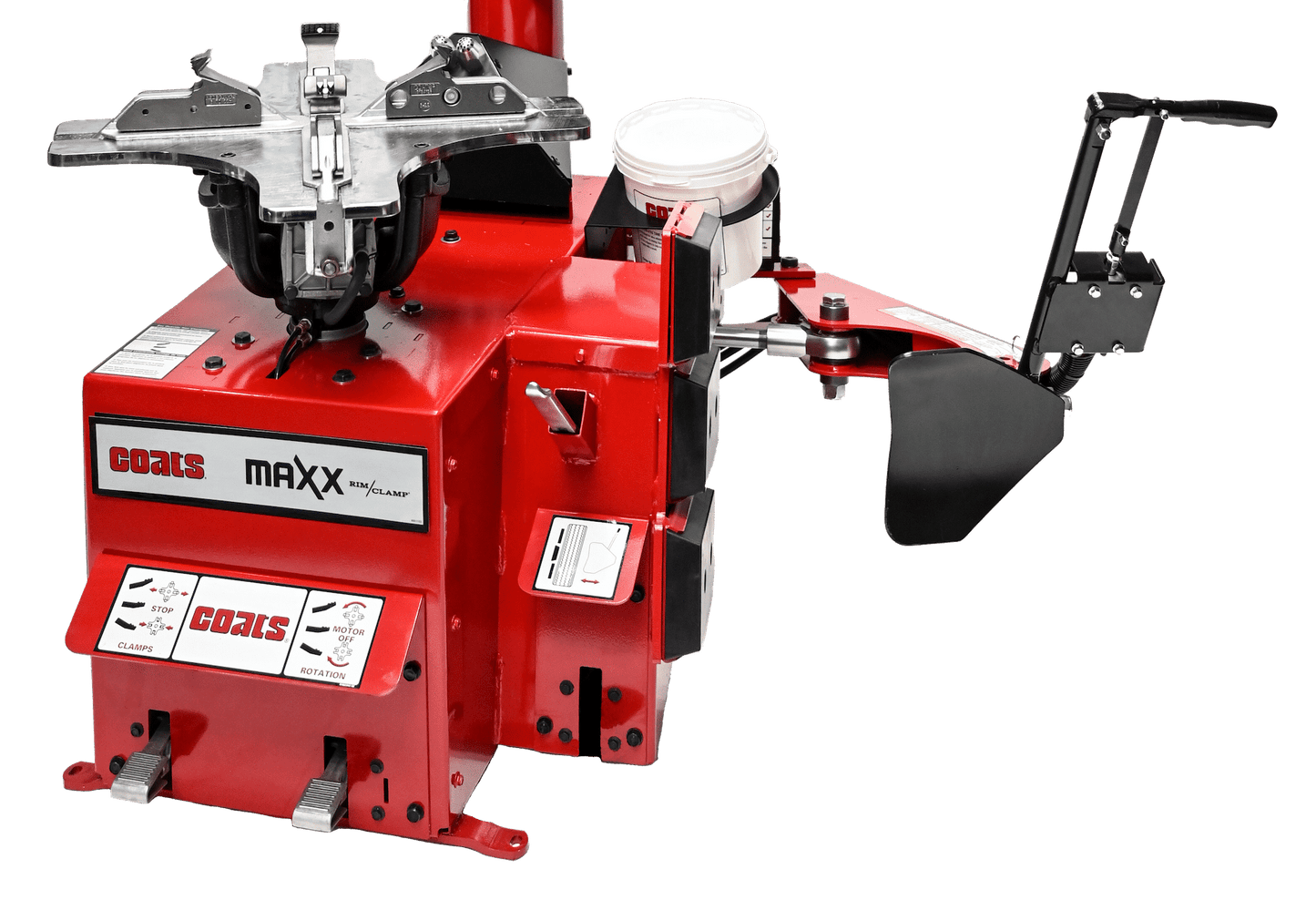

Durable and Reliable Chassis
Our robust chassis is not only capable of clamping extreme assemblies, but it was also tested up to 250,000 bead breaking cycles for ultimate durability in the harshest working environments to make sure it was up for the challenge.

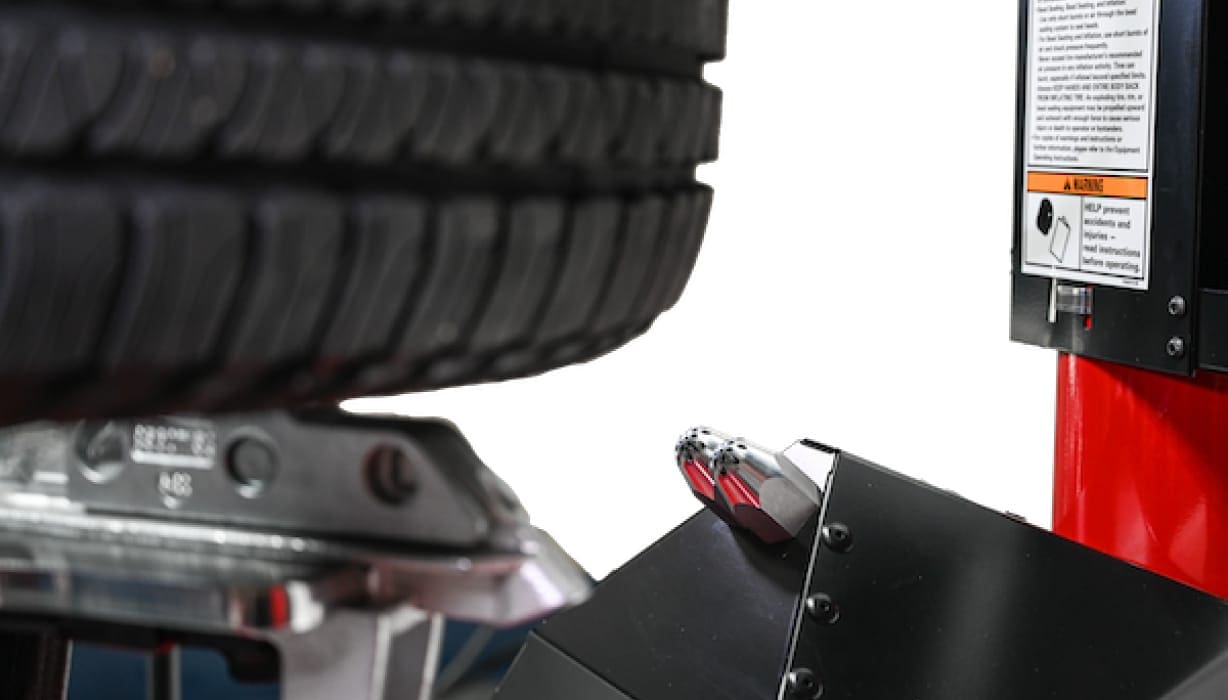

Dual Nozzle
An increased air flow from the dual nozzle bead sealer seals tough beads twice as fast to get your jobs done more efficiently.

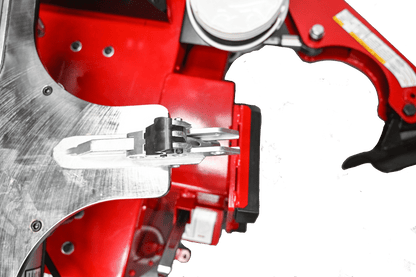

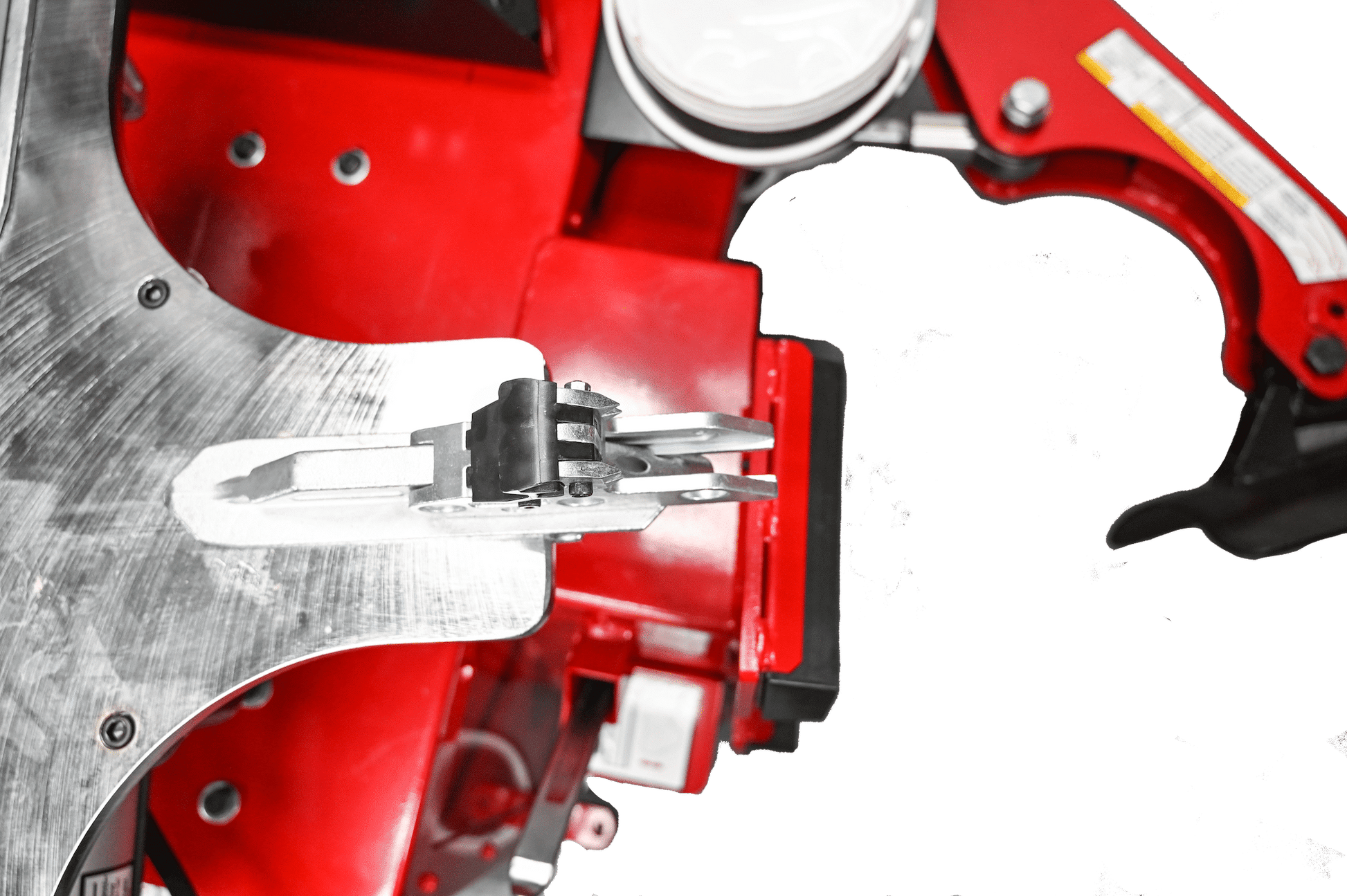

No Index Tabletop
You can save time and skip the need to index the tabletop when working on large assemblies, reducing pedal presses and allowing techs to keep moving.

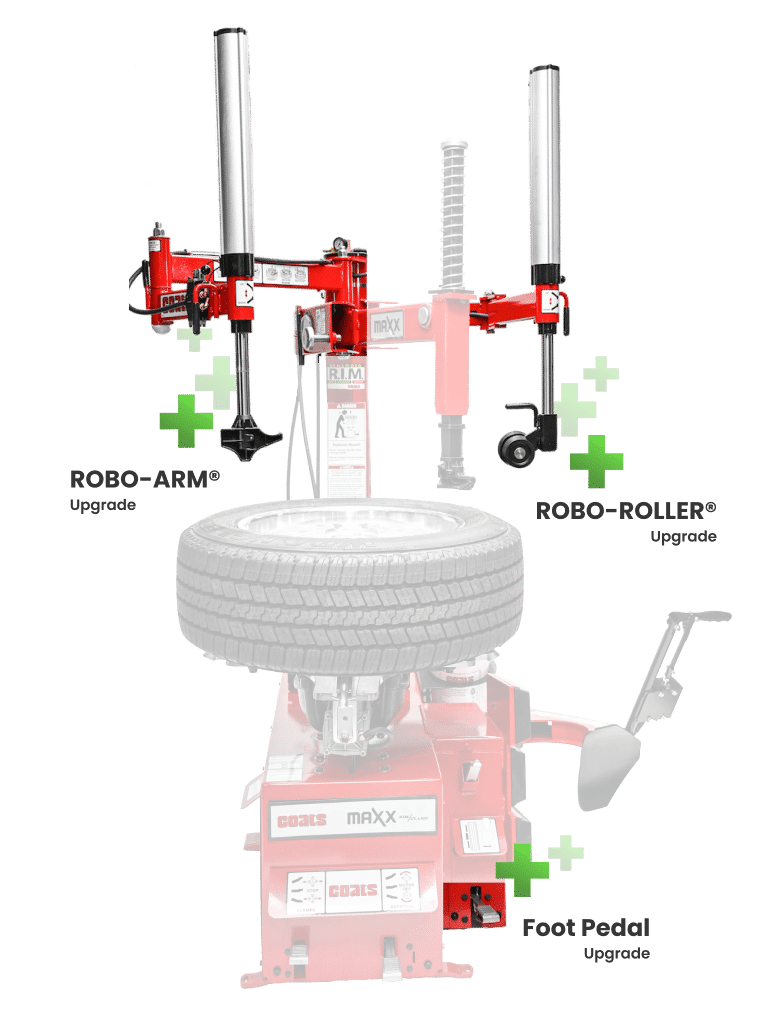

Upgradability
Add tool heads like the Robo-Arm© or Robo-Roller©, or add a bead loosening foot pedal so you can grow your Maxx 50 alongside your business.
