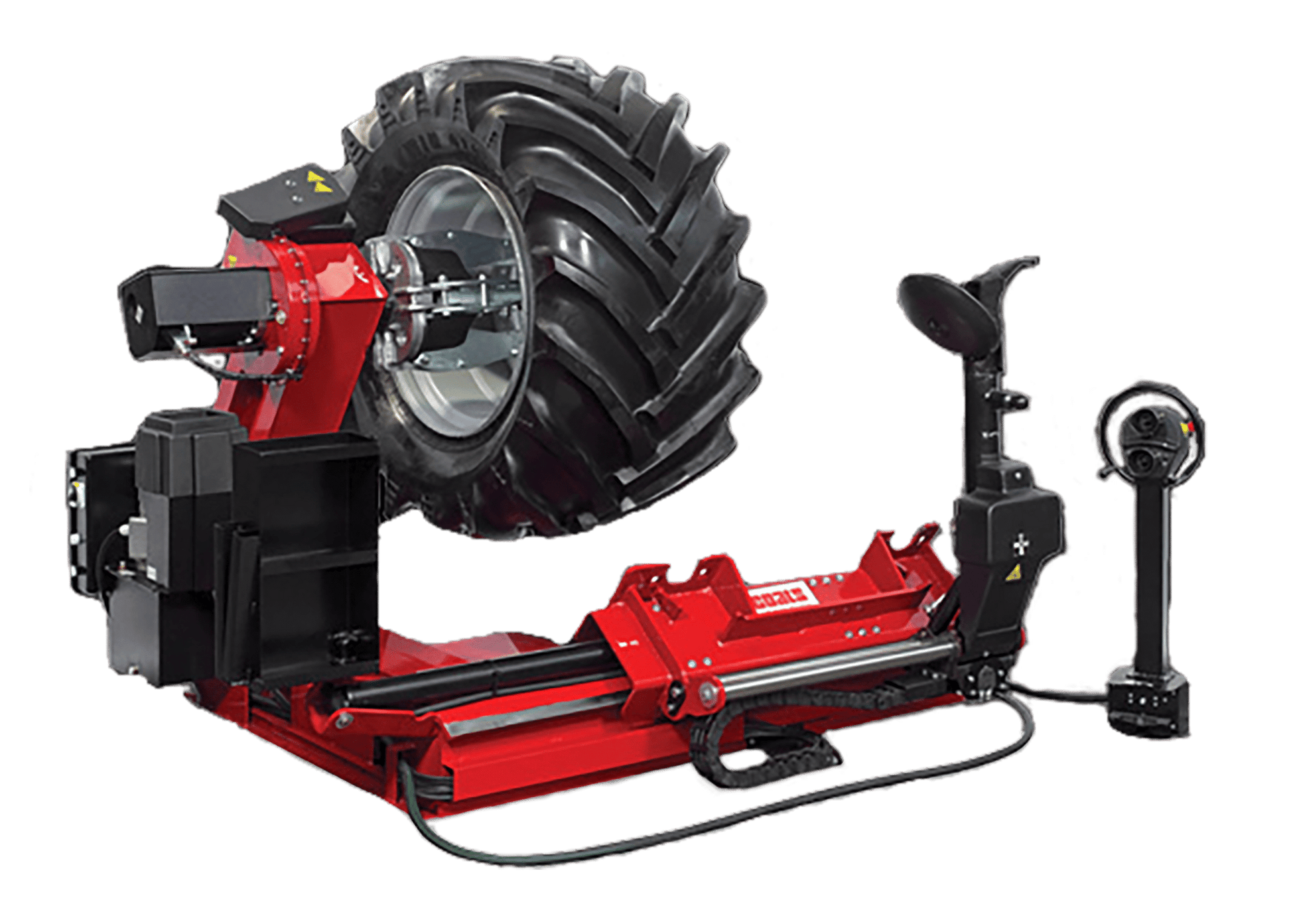

Coats CHD-9551 Heavy Duty Tire Changer
Coats CHD-9551 Heavy Duty Tire Changer
Heavy Duty
14" - 46" (up to 56” with extensions) External Rim Diameter
95" Max Tire Diameter
30.5" Max Rim Width
Remote Positioned Tool Head/Arm
Optional Wireless Control Unit
4 Jaw Chuck Wheel Clamp
2.9HP, Hydraulic Motor Power
112”w x 81”d x 75”h Footprint

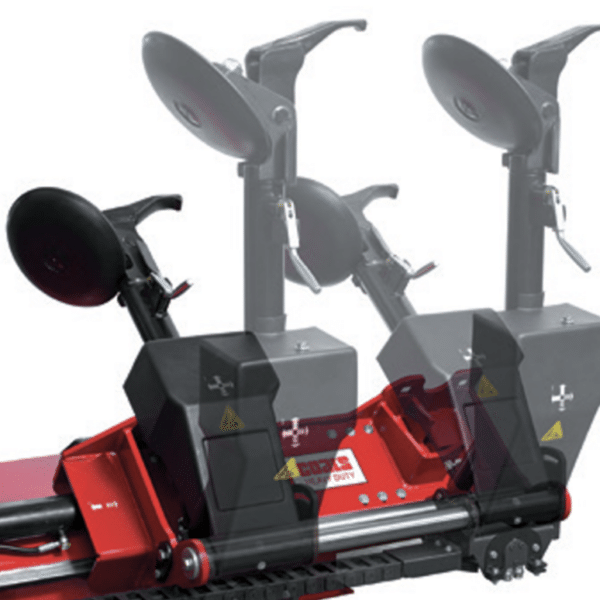

Fully Automated Tool Arm
Remote controlled, hydraulically operated tool arm saves operator effort and speeds tire-changing turnaround time.

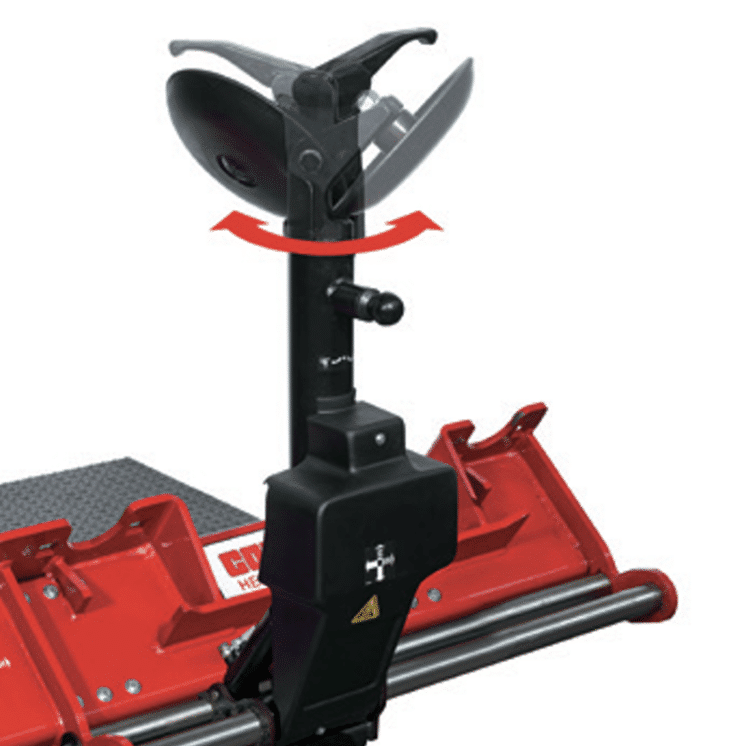

Remotely Controlled Tool Head
Remote control the rotating tool head for the fastest and easiest tool changes in the business.

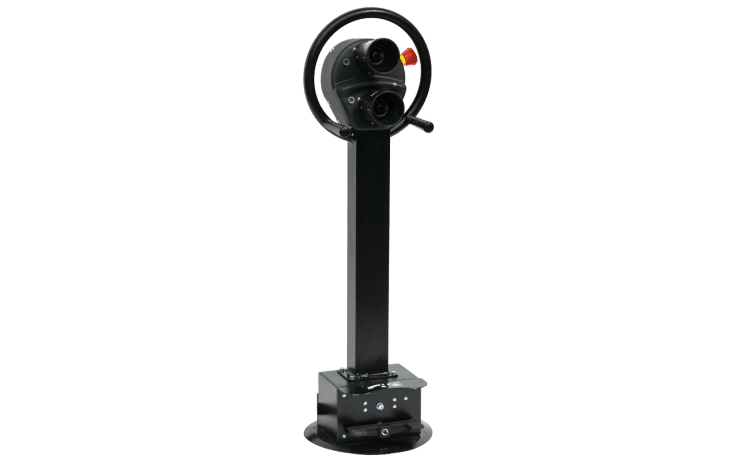

Wired or Wireless Control Station
Choose between an optional wireless remote gives you freedom to move around the machine without cumbersome cables or a wired, portable control station.
Top Of The Line Tire Changer
The CHD 9551 offers the most automated features and widest range of fittings in the CHD line, making it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.
***30 DAY LEAD TIME***
