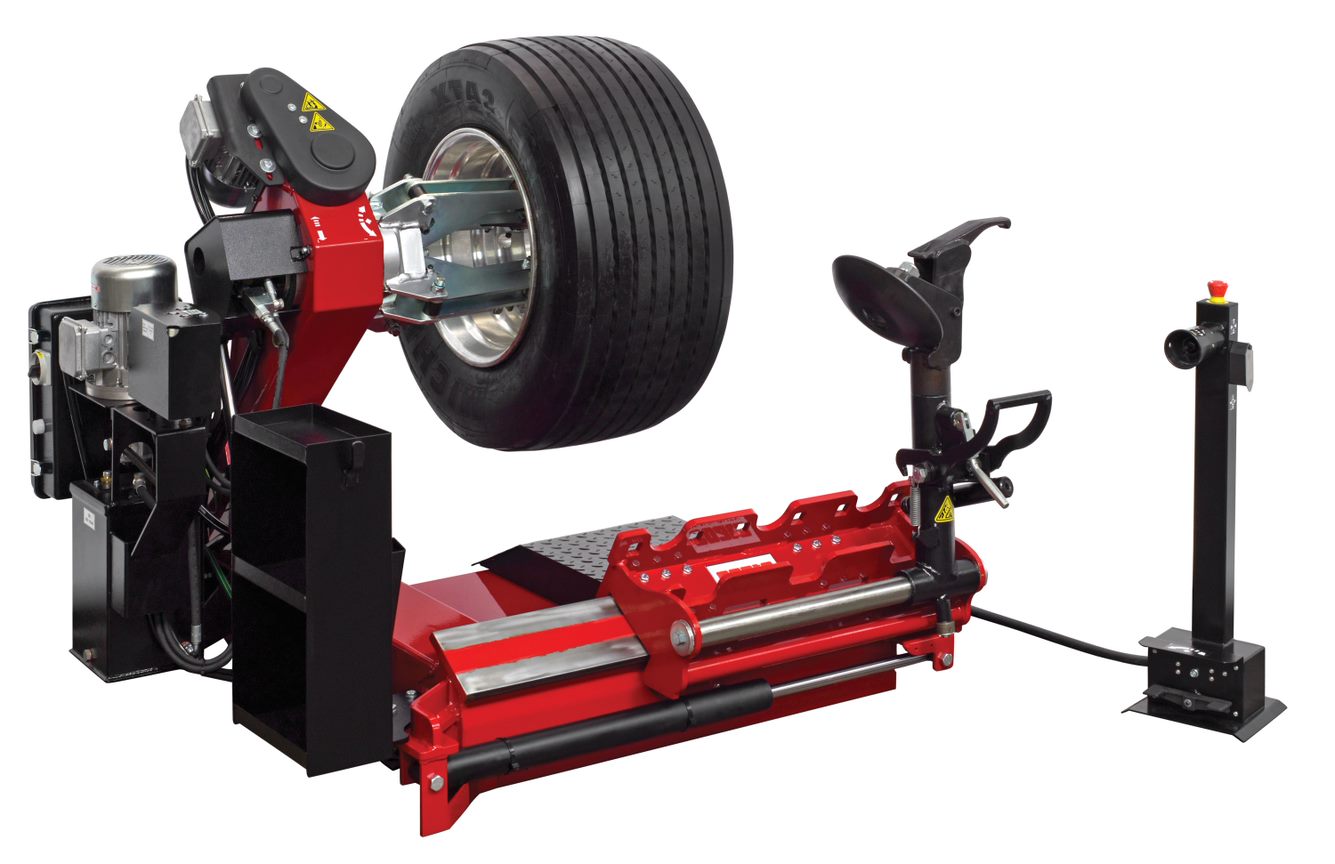

Coats CHD-6330 Heavy Duty Tire Changer
Coats CHD-6330 Heavy Duty Tire Changer
Heavy Duty
13" - 27" External Rim Diameter
63" Max Tire Diameter
30.5" Max Rim Width
Control Stick for Pivoting and Clamping
Manual Positioned Tool Head/Arm
Portable Wired Control Unit
4 Jaw Chuck Wheel Clamp
208-230VAC, 60Hz Electric Motor

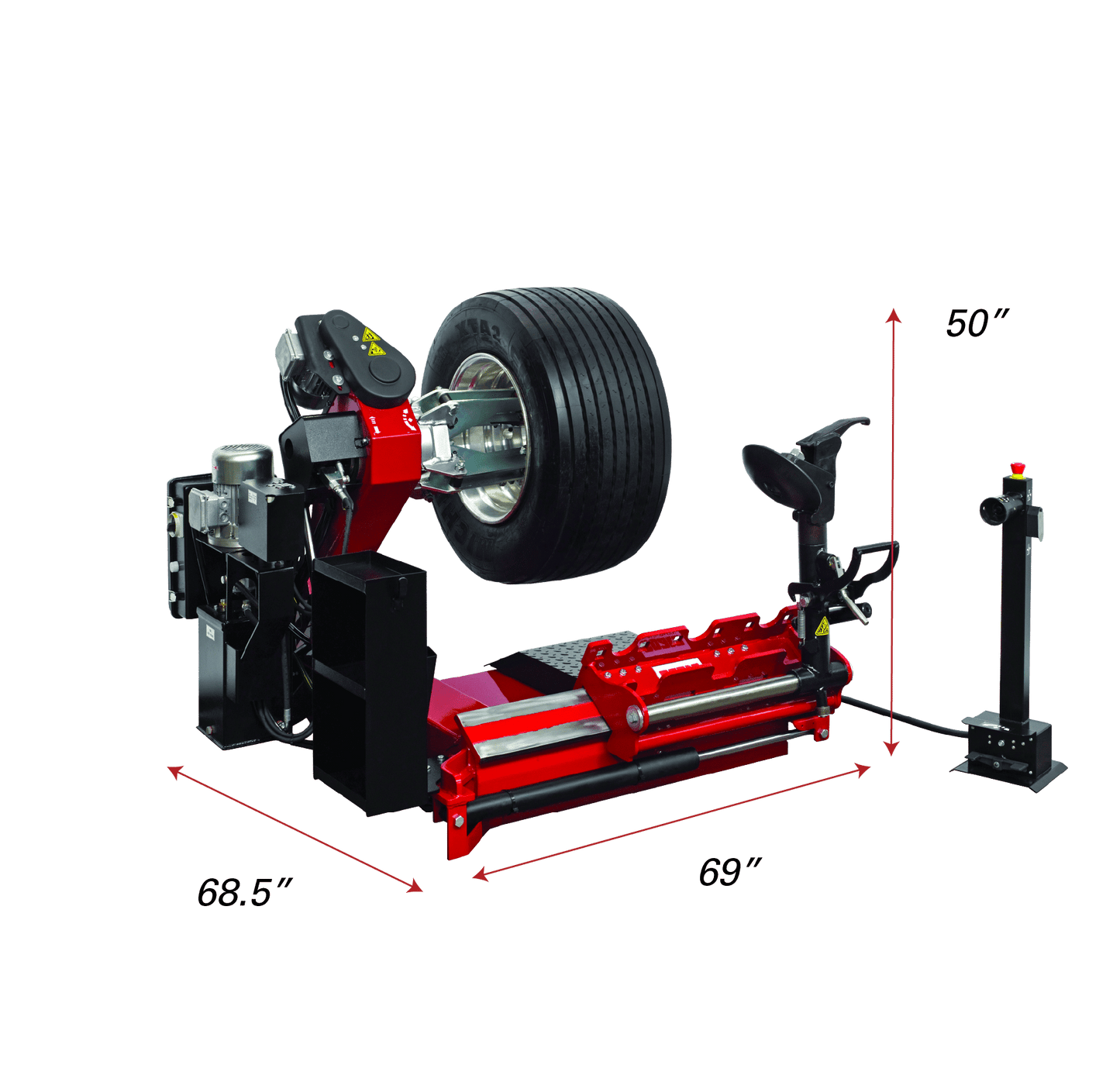

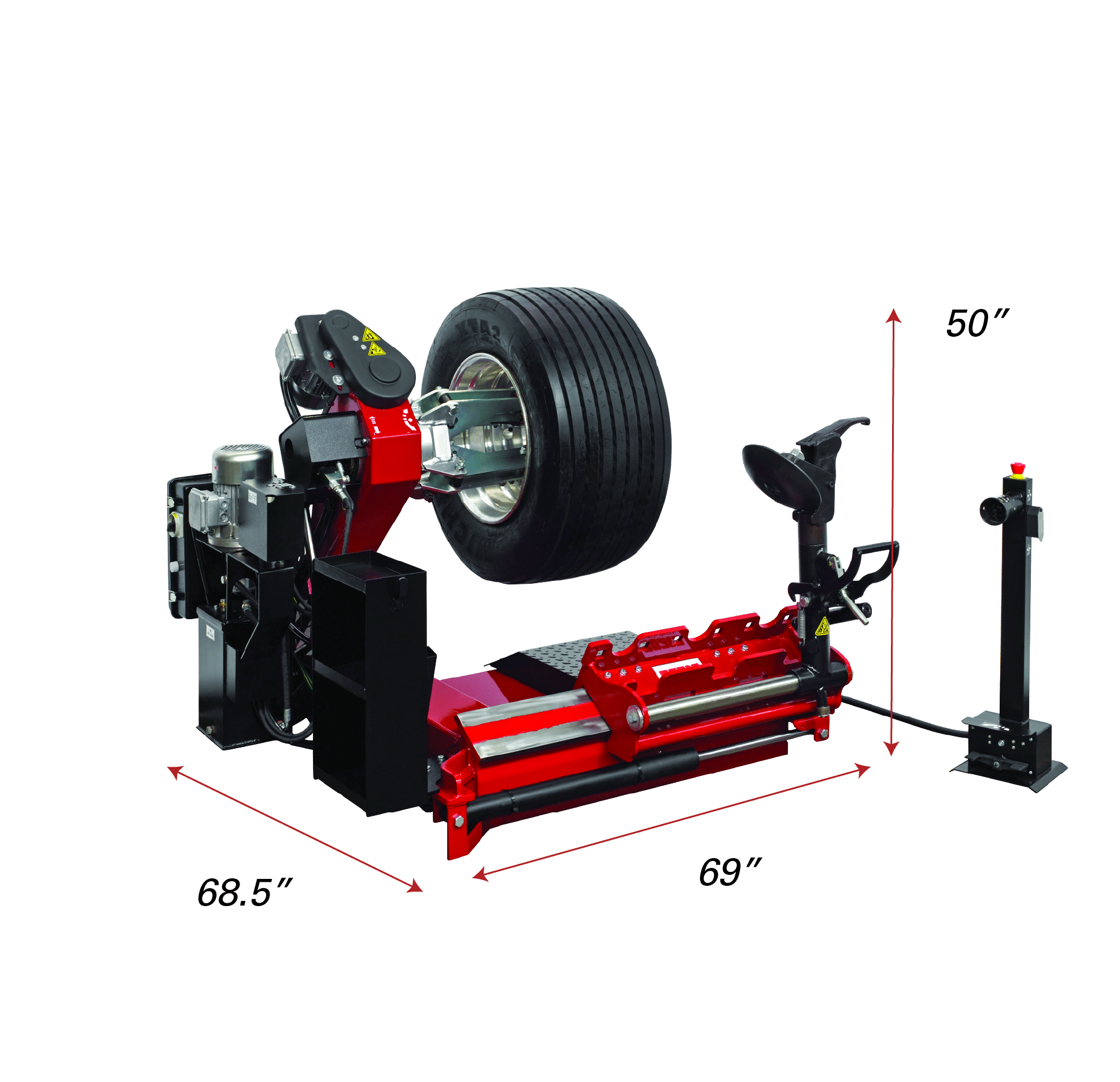

69”w x 68.5”d x 50”h Footprint

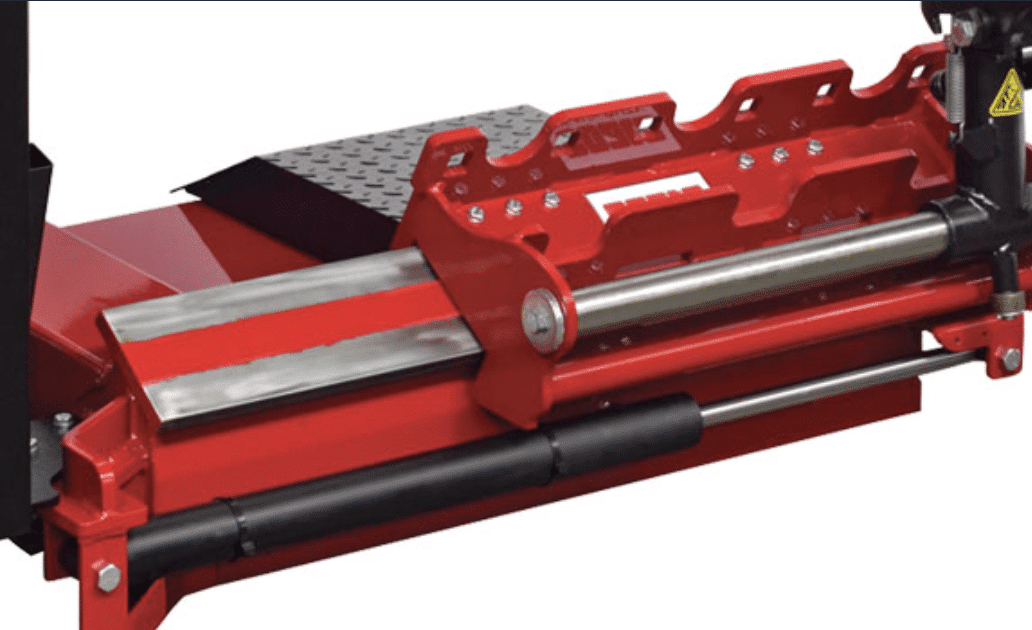

Compact, Sturdy, Single Piece Frame
Perfect for servicing tubeless truck and trailer tires and small industrial assemblies such as Skid Steers, the solid, single piece frame construction was chosen for added capacity and dependability.

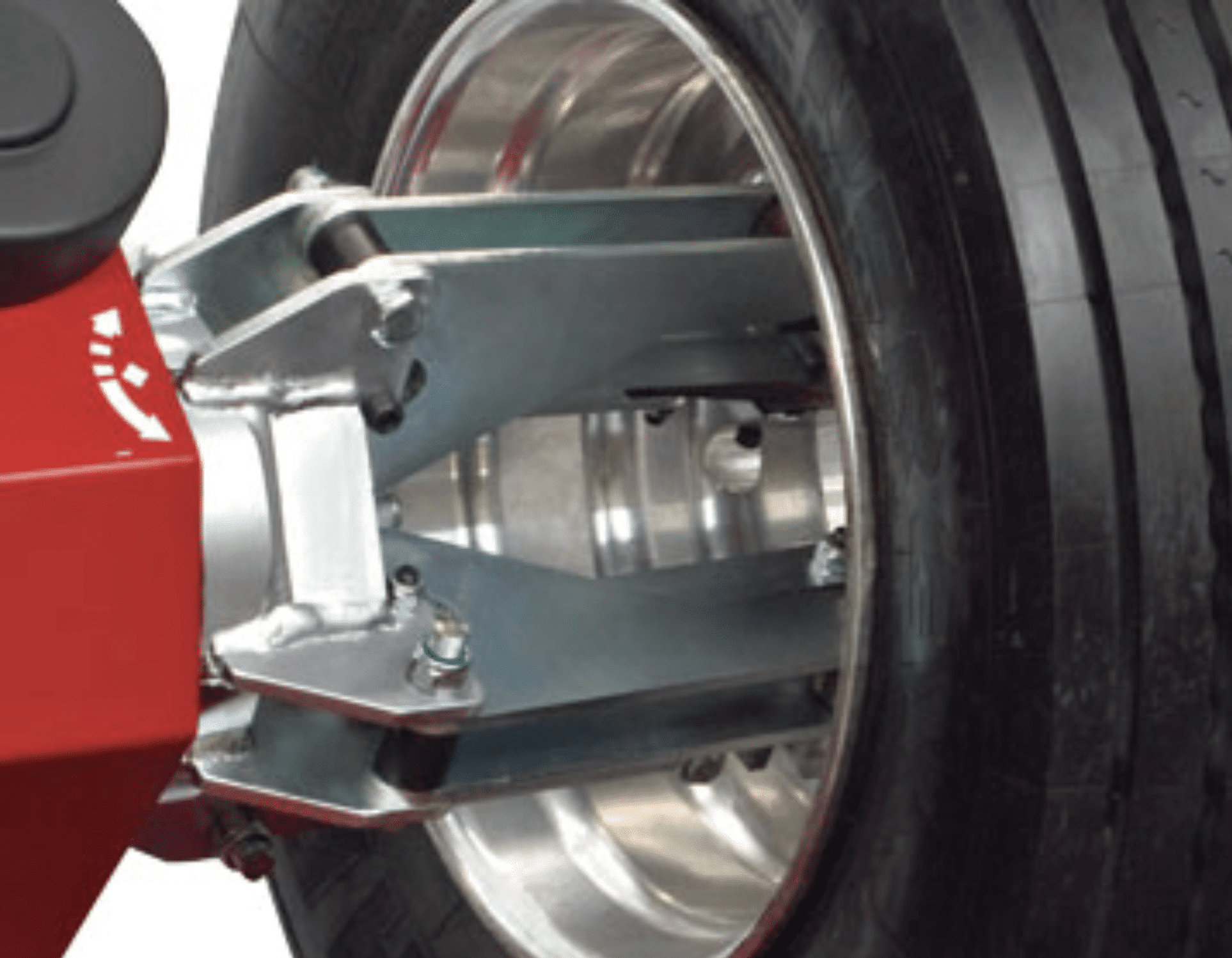

Four Jaw Chuck
Four-jaw chuck allows fast and easy clamping of virtually all rim styles, including de-mountable, Dayton style, reverse disc, standard disc, and off-road style wheels.

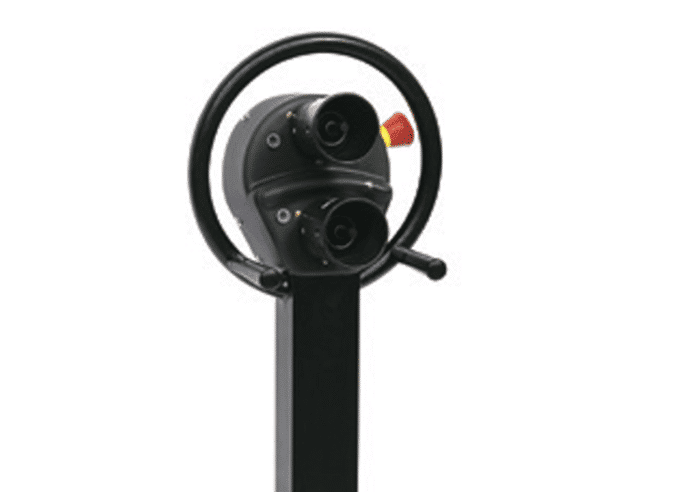

Portable Wired Control Station
A portable control station allows you to always work from the best angle at all times.

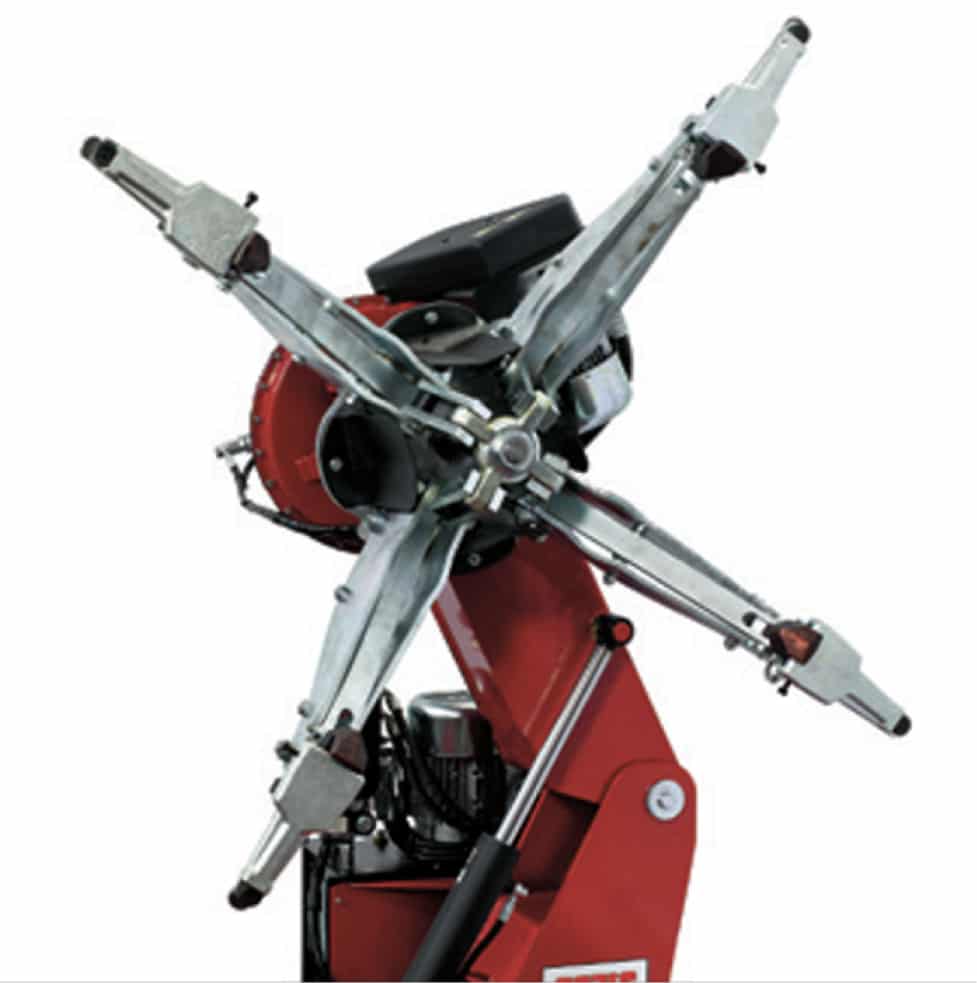

A Perfect Match
The floating jaws match wheel contours for excellent grip and safety and handles rims from 13” to 27” and tires up to 63” in diameter.
***30 DAY LEAD TIME***
