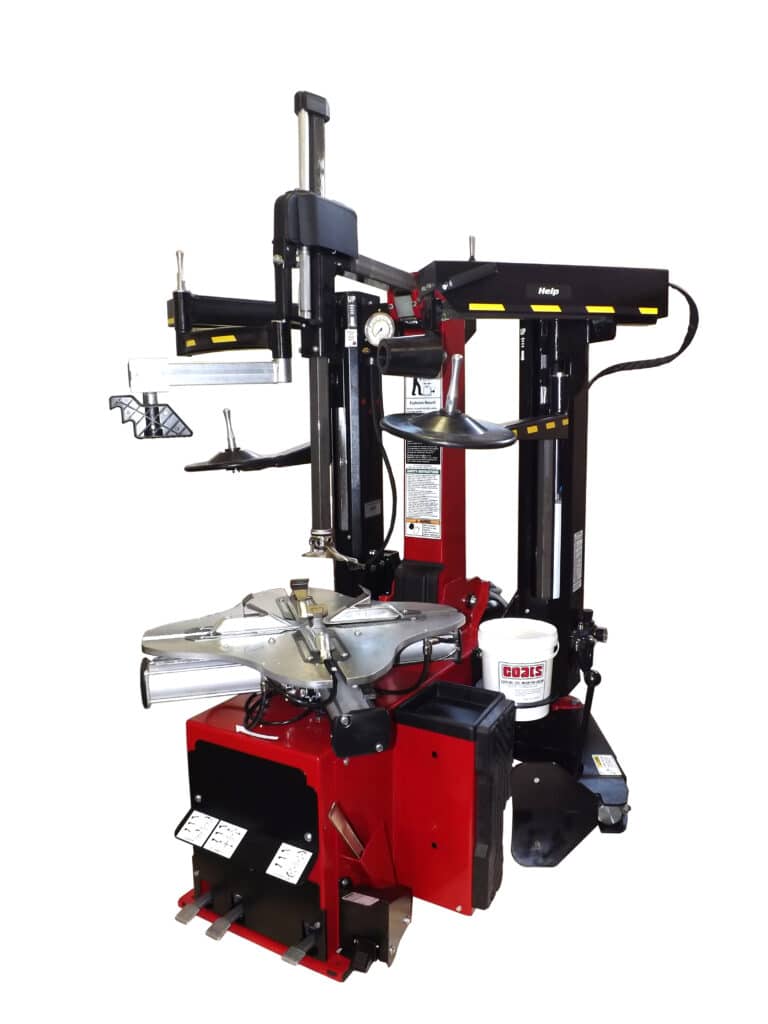

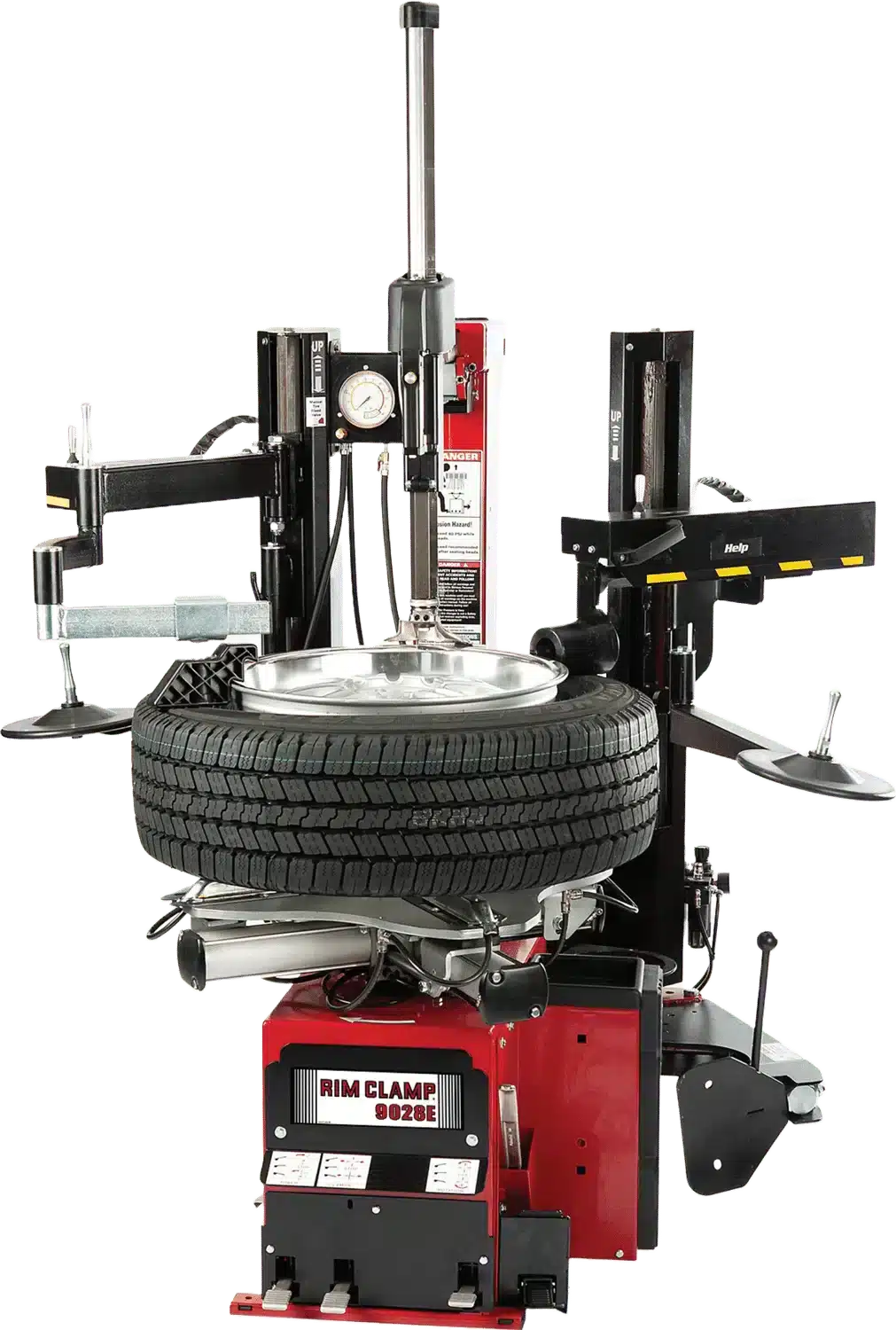

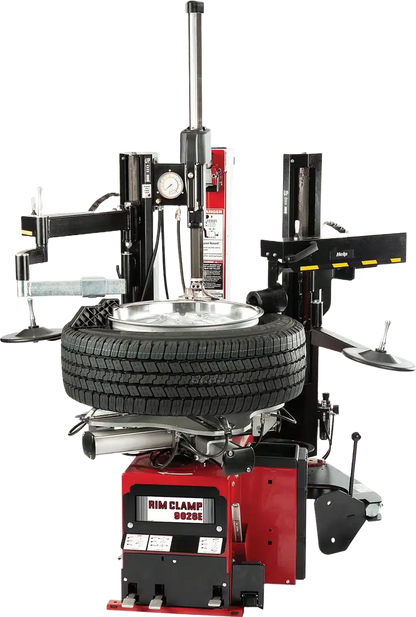

Coats 9028E Rim Clamp Tire Changer
Coats 9028E Rim Clamp Tire Changer
Car and Light Truck
10" - 28" External Rim Diameter
47" Max Tire Diameter
14" Max Rim Width
Foot Control Bead Loosening System
Tilt Back Mount/ Dismount System
Lower Bead Roller Disks
Upper Bead and Power Taper Rollers
Bead Pressing Arm
4 Clamp, Cylinder Geared Actuation
125 V, 60Hz,, Electric Motor

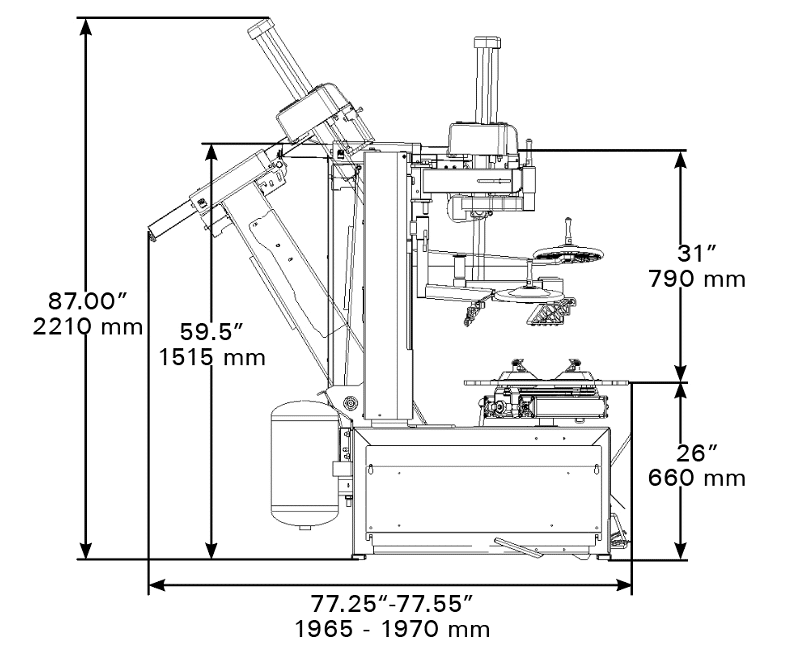

79"w x 76” x 86"h Footprint
Tilt Back Tower
Angled for no interference on second bead removal. Now tilts farther for more clearance.

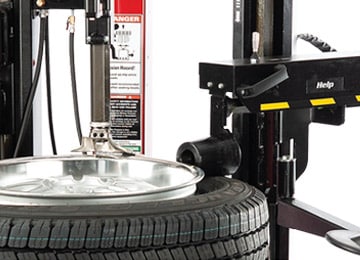

Power Devices
Power taper rollers, pneumatic drop center, and swing-in rollers handle approximately 90% of the effort required to change even the toughest tires. Technicians can concentrate on efficiency.

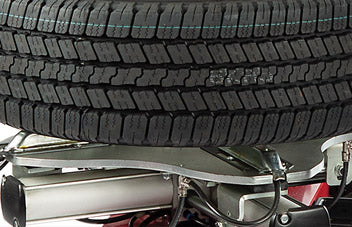

Clamps Wheels Externally Up To 28”
Wheels keep getting bigger and more expensive. The Coats 9028E allows you to change tires on oversized wheels while providing complete protection. You can service the expanding market for custom alloy wheels.

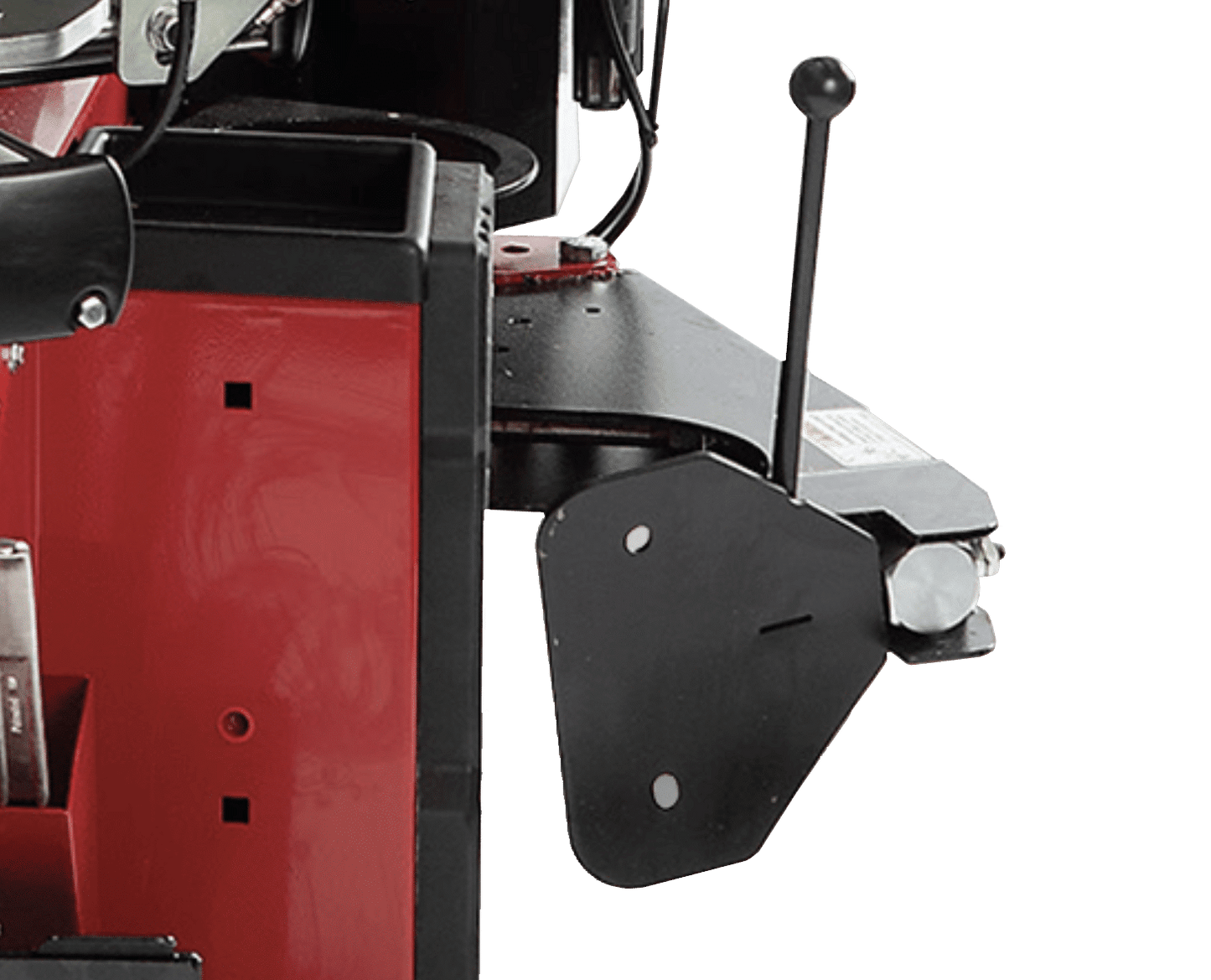

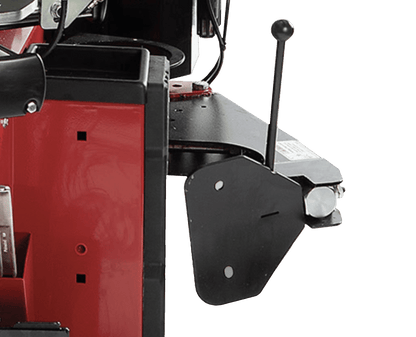

Protect Rims with the Cam Bead Loosener
This double pivoting, cam operated bead loosener allows for straight-lined bead loosening. This prevents the wheel assembly from twisting, which could otherwise lead to damaged rims.
